Fully automated service system for skis and snowboards.
Ski & Snowboard Service

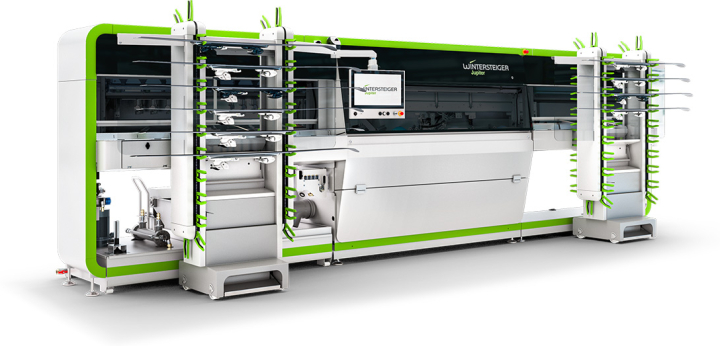

Introducing the Wintersteiger Jupiter
We’re proud to offer ski and snowboard tuning with the Wintersteiger Jupiter, the most advanced automated service system in the industry. This state-of-the-art machine combines cutting-edge innovations like V-Edge tuning for perfectly balanced control, Trim Cut sidewall planing for precision edges, and the legendary Ceramic Disc Finish for unmatched consistency. With its high-capacity loading system and enhanced technology, Jupiter delivers faster service, greater accuracy, and a smoother ride on the slopes. Experience a whole new level of performance with ski and snowboard tuning available only in-store at Leisuretime.
Your benefits summed up:
Completely Individual Machine Configuration
- 5 different processing modules
- Highest throughput rate of more than 70 pairs of skis an hour
- 3 application levels for growing demands: Universal, Performance, Race
Optimum Ski Handling
- 3 feeding variants: Paternoster (X), loading unit (L), manual (M)
- Each feed option is also available in an extended race version for longer racing skis
- Suction-less ski transport with 9 or up to 11 cylinders (Race) per ski for perfect grinding right to the tip
Perfect Edge Preparation
- V-Edge: Precision, variable edge angles for both base and side edges
- Automated sidewall removal (Trim Cut) for optimum Ceramic Disc side edge tuning
- Individual edge preparation according to the ski classification, which is read from a barcode or QR code on the ski
Individual Base Preparation
- Structure recommendation depending on snow conditions
- Precise balancing directly on the machine
- 3D structures for all racing requirements
Digital Solutions
- Online connection to the machine and connection to the Easyrent rental software
- Automatic ski recognition and processing assignment
Highlights

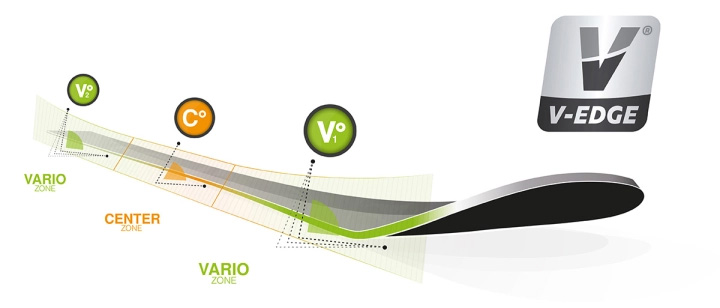

V-Edge®
Variable V-Edge tuning technology.
Variable V-Edge tuning technology.
The best edge tuning improved!
The edge is ground with variable angles in the tip and tail areas, and at a constant angle underfoot – on both the base edge and side edge. V-Edge works with the three performance categories that are also provided in the Tune Pilot, to provide tried and tested parameters efficiently and, optionally, with automatic ski recognition. Perfect edge grip and easy turning of the ski are combined for the ultimate skiing experience. V-Edge is available for both the disc module and the polishing module.
With the “automatic ski recognition” option, changes to the edge angles in V-Edge mode take place fully automatically. The edge angles are variable along the ski length. Underfoot the skis have a dynamic edge angle for optimum grip and guidance on hard artificial snow and ice. The edge angle is greater in the tip and tail for easy control and movement in the turns. In addition to the entirely new skiing experience, this also significantly enhances safety.
Precise, variable edge grinding takes place on the base and side edges, entirely independent of ski length and width, and based either on the predefined and tested parameters or on-the-fly, which can then be saved in Easyrent.
One V-Edge for 2 modules: V-Edge Disc (optional) also controls the Polishing module – without added investment!
3 application levels
Universal
- For medium-sized service companies
- Throughput rates of up to around 10,000 pairs of skis per year and more, and high quality standards
- Universal application in both rental and customer service
- Various options and upgrades
Performance
- For major service companies and for the highest demands
- For very high throughput rates and high expectations for service and up-time
- High throughput and outstanding reliability
- Additional options for top performance
Race (3D)
- For the highest precision and quality demands
- For maximum ski lengths
- Maximum flexibility in terms of individual programming
- Further options especially for racing
Visit Leisuretime of Southbury
Ready for the Perfect Tune?
Our state-of-the-art Wintersteiger Jupiter machine delivers precision tuning you won’t find anywhere else. Since this service is available in-store only, reach out today to plan your visit or ask us any questions. We’re here to help get your gear slope-ready.
